File Upload on Google App Engine using struts2

Intent of my Blog

Few months back, i wrote a blog on Creating Struts2 application on Google App Engine and some developers asked me how to upload a file using struts2 on google app engine. At that point of time, i was playing with google app engine and was not very clear about the limitation google app engine imposes. Google App Engine does not allow your application to write a file to their application server. This was a very big limitation as most of the application require some sort of file upload. So, i decided to find some way by which i can achieve the upload functionality and i found this link. But, i didn’t wanted to use servelt in my code because i was trying to build a application using struts 2.I wanted to work with actions and use FileUploadInterceptor. With the current implementation of struts 2 FileUploadInterceptor, i can’t do fileupload because it writes file to server.So, after spending some time with struts2 code, i wrote my own extension for Struts 2.This post will discuss how you can use small struts2 wrapper framework, i created for google app engine in your application to do fileupload and more.

Prerequisites for starting Struts2 Application on Google App Engine

Before you start building your sample application on google app engine using struts 2 you will need the following:-

Google App Engine runs on java 5 and above so if necessary, download and install the Java SE Development Kit (JDK) for your platform and for mac users download and install the latest version.
In this example we will be using Eclipse as our ide. So if necessary, download eclipse and google app engine plugin for eclipse.You will also need to download the google java app engine SDK. For more information you can refer to installing the java SDK for google app engine.
Download the latest release of Struts2 framework.If you want to learn struts 2 a very good reference is struts 2 in action book.Please buy Struts 2 in Action.
Download the latest release of struts2-gae framework.It is an wrapper around struts 2 for google app engine.

Step by Step procedure to create Struts2 File Upload application on Google App Engine.

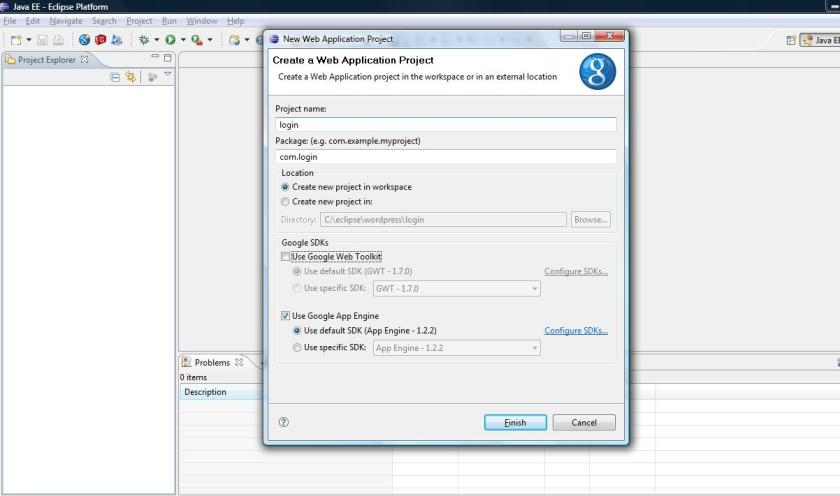

Step 1: Create a new project by clicking the New Web Application Project button in the toolbar.

Step 2 : Give the project name say struts2-fileupload as we are going to create a simple file upload application. Enter package name as com.login and uncheck “Use Google Web Toolkit,” and ensure “Use Google App Engine” is checked and click the finish button.

Step3 : When you click the finish button you will get a sample HelloWorld application, which you can run going in the Run menu, select Run As > Web Application.By default application will run at port 8080, you can view the sample application at http://locahost:8080. For more information on the sample google web application created by the plugin you can refer to Google java app engine documentation .Please keep in mind that intent of this document is not to provide developers the overview of Google App engine for Java.

Step4 : By now you are ready with the google app engine infrastructure and we can move to the next step of creating a file upload application in Struts 2.

for creating a struts 2 application you will need to first add the required dependencies to the struts2-fileupload project. The required struts 2 jars are below mentioned and you can find these jars in struts2 package you downloaded inside the lib folder :-
- commons-fileupload-1.2.1.jar
- commons-io-1.3.2.jar
- commons-logging-1.1.jar
- freemarker-2.3.13.jar
- ognl-2.6.11.jar
- struts2-core-2.1.6.jar
- struts2-gae-0.1.jar
- xwork-2.1.2.jar

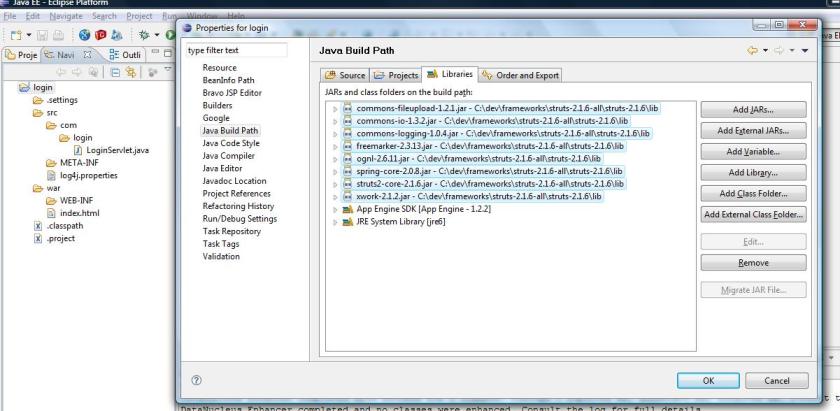

Add these dependencies in your eclipse java build path.

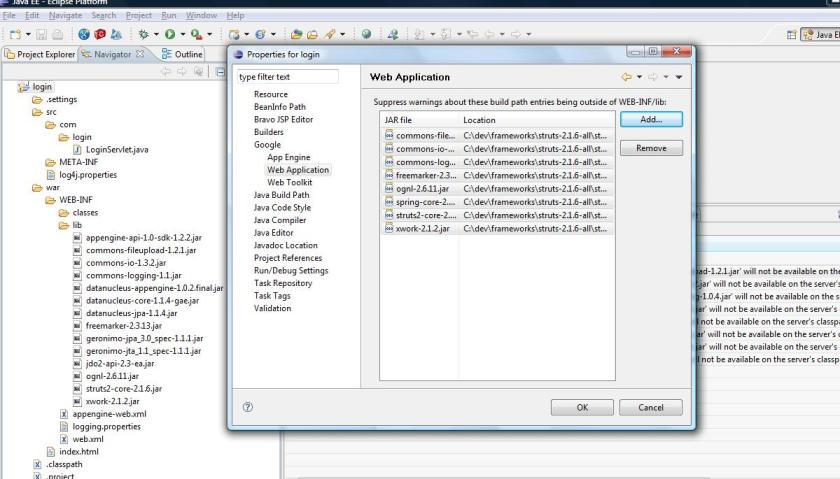

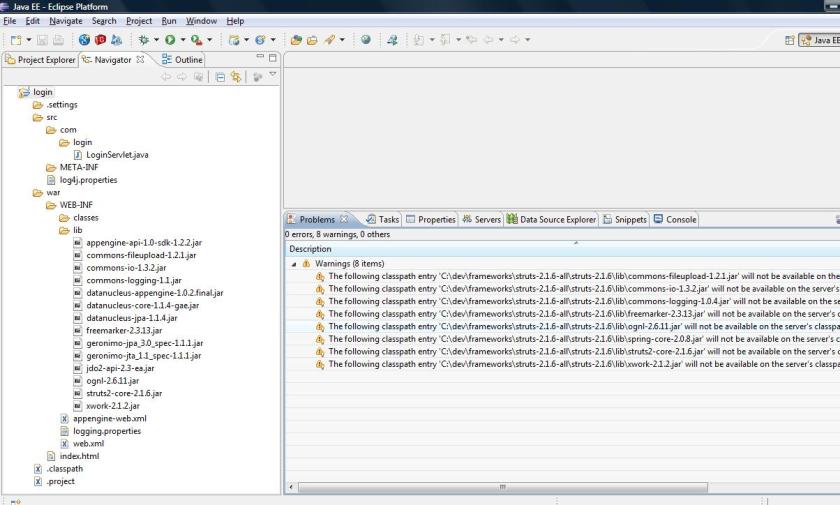

Add these dependencies in the war/WEB-INF/lib folder so that these jars gets deployed along with your application.
First step in creating a struts 2 application is configuring the web.xml (deployment descriptor) which is located in WEB-INF folder.You can remove the servlet declaration from web.xml as we will not be needing this.In the last post,we configured FilterDispatcher(this is theFilterDispatcher which comes with struts2) but in this application we need to add the GaeFilterDispatcher(this is provided by struts 2 extension framework for GAE). We will declare GaeFilterDispatcher in web.xml, because in struts2 every request goes pass through a FilterDispatcher, which will invoke the appropriate action corresponding to the URL mapping.So our web.xml will look like :-

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">
 <filter>
 <filter-name>struts2-gae</filter-name>
 <filter-class>com.struts2.gae.dispatcher.GaeFilterDispatcher</filter-class>
 </filter>
 <filter-mapping>
 <filter-name>struts2-gae</filter-name>
 <url-pattern>/*</url-pattern>
 </filter-mapping>
 <welcome-file-list>
 <welcome-file>index.html</welcome-file>
 </welcome-file-list>
</web-app>

To start we will be creating a jsp fileupload page using struts 2 tag library and we will call file upload page from index.html.To call the fileupload page there are two ways first, we can directly call the upload.jsp page from link second, we can calling it through struts. We will be taking the second step as this will show you how to configure actions when you dont need to invoke any action.Lets first see how our login page and index.html will look like :-

index.html

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<title>Struts2 File upload on Google App Engine</title>
</head>

<body>
<h1>Struts2 File upload on Google App Engine!</h1>
<table>
<tr>
<td colspan="2" style="font-weight: bold;">Available Application:</td>
</tr>
<tr>
<td><a href="/add" />Upload my Photo</td>
</tr>
</table>
</body>
</html>

upload.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"</pre>
 pageEncoding="ISO-8859-1"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Upload my Photo</title>
</head>
<body>
 <s:form action="upload" method="post" enctype="multipart/form-data">
 <s:file name="photo" label="Upload new Photo"></s:file>
 <s:submit value="Upload"></s:submit>
 </s:form>

</body>
</html>

After creating the upload.jsp we need to configure this as action in the struts.xml file which you be should put inside source folder parallel to log4j.properties file.We can configure action as mentioned below:-

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
	<include file="struts-default.xml"></include>
<package name="" namespace="/" extends="struts-default">
		<action name="add">
			<result>/upload.jsp</result>
		</action>
	</package>
</struts>

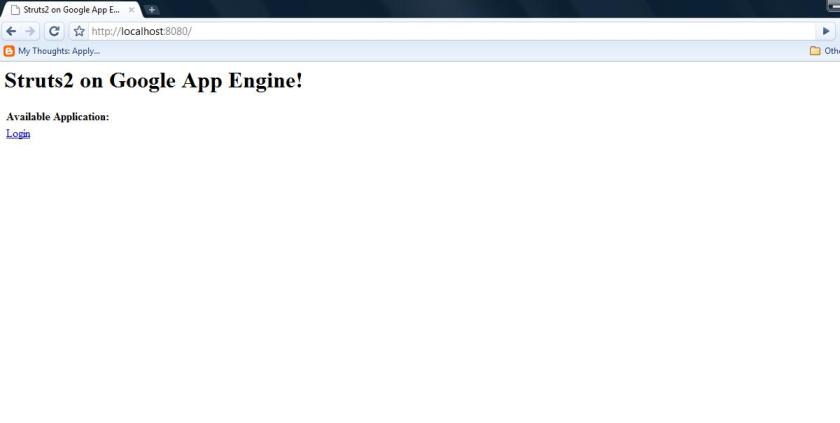

Now try running this application by right click on project run as > web application and click http://localhost:8080. You will see index.html and when you click on upload my photo you will get this exception :-

SEVERE: Unable to set parameter [location] in result of type [org.apache.struts2.dispatcher.ServletDispatcherResult]

Caught OgnlException while setting property ‘location’ on type ‘org.apache.struts2.dispatcher.ServletDispatcherResult’. – Class: ognl.OgnlRuntime

File: OgnlRuntime.java

Method: invokeMethod

Line: 508 – ognl/OgnlRuntime.java:508:-1

at com.opensymphony.xwork2.ognl.OgnlUtil.internalSetProperty(OgnlUtil.java:392)

Caused by: java.lang.IllegalAccessException: Method [public void org.apache.struts2.dispatcher.StrutsResultSupport.setLocation(java.lang.String)] cannot be accessed.

at ognl.OgnlRuntime.invokeMethod(OgnlRuntime.java:508)

at ognl.OgnlRuntime.callAppropriateMethod(OgnlRuntime.java:812)

at ognl.OgnlRuntime.setMethodValue(OgnlRuntime.java:964)

at ognl.ObjectPropertyAccessor.setPossibleProperty(ObjectPropertyAccessor.java:75)

at ognl.ObjectPropertyAccessor.setProperty(ObjectPropertyAccessor.java:131)

at com.opensymphony.xwork2.ognl.accessor.ObjectAccessor.setProperty(ObjectAccessor.java:28)

at ognl.OgnlRuntime.setProperty(OgnlRuntime.java:1656)

at ognl.ASTProperty.setValueBody(ASTProperty.java:101)

at ognl.SimpleNode.evaluateSetValueBody(SimpleNode.java:177)

at ognl.SimpleNode.setValue(SimpleNode.java:246)

at ognl.Ognl.setValue(Ognl.java:476)

at com.opensymphony.xwork2.ognl.OgnlUtil.setValue(OgnlUtil.java:192)

at com.opensymphony.xwork2.ognl.OgnlUtil.internalSetProperty(OgnlUtil.java:385)

… 73 more

In order to resolve this problem we need to make entry in web.xml file also for OgnlListener.This OgnlListener is also provided by struts2-gae framework.(A struts2 extension framework for GAE).

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" version="2.5">
<filter>
<filter-name>struts2-gae</filter-name>
<filter-class>com.struts2.gae.dispatcher.GaeFilterDispatcher</filter-class>
</filter>
<filter-mapping>
<filter-name>struts2-gae</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<listener>
<listener-class>com.struts2.gae.listener.OgnlListener</listener-class>
</listener>
<welcome-file-list>
<welcome-file>index.html</welcome-file>
</welcome-file-list>
</web-app>

You need to add this step if you are using Google App Engine 1.2.6 because when you run struts2 application on google app engine 1.2.6 you will get the following error:-

javax.servlet.ServletException: java.lang.NoClassDefFoundError: javax.swing.tree.TreeNode is a restricted class. Please see the Google App Engine developer’s guide for more details.
at org.apache.jasper.runtime.PageContextImpl.doHandlePageException(PageContextImpl.java:825)
at org.apache.jasper.runtime.PageContextImpl.access$1100(PageContextImpl.java:64)
at org.apache.jasper.runtime.PageContextImpl$12.run(PageContextImpl.java:745)
at java.security.AccessController.doPrivileged(Native Method)
at org.apache.jasper.runtime.PageContextImpl.handlePageException(PageContextImpl.java:743)
at org.apache.jsp.login_jsp._jspService(login_jsp.java:86)
at org.apache.jasper.runtime.HttpJspBase.service(HttpJspBase.java:94)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:806)
at org.apache.jasper.servlet.JspServletWrapper.service(JspServletWrapper.java:324)
at org.apache.jasper.servlet.JspServlet.serviceJspFile(JspServlet.java:292)
at org.apache.jasper.servlet.JspServlet.service(JspServlet.java:236)
at com.google.appengine.tools.development.PrivilegedJspServlet.access$101(PrivilegedJspServlet.java:23)
at com.google.appengine.tools.development.PrivilegedJspServlet$2.run(PrivilegedJspServlet.java:59)
at java.security.AccessController.doPrivileged(Native Method)
at com.google.appengine.tools.development.PrivilegedJspServlet.service(PrivilegedJspServlet.java)

To avoid this error you need to create a new package “freemarker.core” in your source folder and add the following class

</span></span>

/*
 * Copyright (c) 2003 The Visigoth Software Society. All rights
 * reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * 1. Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form must reproduce the above
copyright
 *    notice, this list of conditions and the following disclaimer in
 *    the documentation and/or other materials provided with the
 *    distribution.
 *
 * 3. The end-user documentation included with the redistribution, if
 *    any, must include the following acknowledgement:
 *       "This product includes software developed by the
 *        Visigoth Software Society (http://www.visigoths.org/)."
 *    Alternately, this acknowledgement may appear in the software
itself,
 *    if and wherever such third-party acknowledgements normally
appear.
 *
 * 4. Neither the name "FreeMarker", "Visigoth", nor any of the names
of the
 *    project contributors may be used to endorse or promote products
derived
 *    from this software without prior written permission. For written
 *    permission, please contact visigo...@visigoths.org.
 *
 * 5. Products derived from this software may not be called
"FreeMarker" or "Visigoth"
 *    nor may "FreeMarker" or "Visigoth" appear in their names
 *    without prior written permission of the Visigoth Software
Society.
 *
 * THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED
 * WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
 * DISCLAIMED.  IN NO EVENT SHALL THE VISIGOTH SOFTWARE SOCIETY OR
 * ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
 * USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
 * ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
 * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 * OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
 * SUCH DAMAGE.
 *
====================================================================
 *
 * This software consists of voluntary contributions made by many
 * individuals on behalf of the Visigoth Software Society. For more
 * information on the Visigoth Software Society, please see
 * http://www.visigoths.org/
 */

package freemarker.core;

import java.io.IOException;

/**
 * A TemplateElement representing a block of plain text.
 *
 * @version $Id: TextBlock.java,v 1.17 2004/01/06 17:06:42 szegedia Exp $
 */
public final class TextBlock extends TemplateElement {
 private static final char[] EMPTY_CHAR_ARRAY = new char[0];
 static final TextBlock EMPTY_BLOCK = new TextBlock(EMPTY_CHAR_ARRAY, false);
 // We're using char[] instead of String for storing the text block because
 // Writer.write(String) involves copying the String contents to a char[]
 // using String.getChars(), and then calling Writer.write(char[]).By
 // using Writer.write(char[]) directly, we avoid array copying on each
 // write.
 private char[] text;
 private final boolean unparsed;

 public TextBlock(String text) {
 this(text, false);
 }

 public TextBlock(String text, boolean unparsed) {
 this(text.toCharArray(), unparsed);
 }

 private TextBlock(char[] text, boolean unparsed) {
 this.text = text;
 this.unparsed = unparsed;
 }

 /**
 * Simply outputs the text.
 */
 public void accept(Environment env) throws IOException {
 env.getOut().write(text);
 }

 public String getCanonicalForm() {
 String text = new String(this.text);
 if (unparsed) {
 return "<#noparse>" + text + "</#noparse>";
 }
 return text;
 }

 public String getDescription() {
 String s = new String(text).trim();
 if (s.length() == 0) {
 return "whitespace";
 }
 if (s.length() > 20) {
 s = s.substring(0, 20) + "...";
 s = s.replace('\n', ' ');
 s = s.replace('\r', ' ');
 }
 return "text block (" + s + ")";
 }

 TemplateElement postParseCleanup(boolean stripWhitespace) {
 if (text.length == 0)
 return this;
 int openingCharsToStrip = 0, trailingCharsToStrip = 0;
 boolean deliberateLeftTrim = deliberateLeftTrim();
 boolean deliberateRightTrim = deliberateRightTrim();
 if (!stripWhitespace || text.length == 0) {
 return this;
 }
 if (parent.parent == null && previousSibling() == null)
 return this;
 if (!deliberateLeftTrim) {
 trailingCharsToStrip = trailingCharsToStrip();
 }
 if (!deliberateRightTrim) {
 openingCharsToStrip = openingCharsToStrip();
 }
 if (openingCharsToStrip == 0 && trailingCharsToStrip == 0) {
 return this;
 }
 this.text = substring(text, openingCharsToStrip, text.length
 - trailingCharsToStrip);
 if (openingCharsToStrip > 0) {
 this.beginLine++;
 this.beginColumn = 1;
 }
 if (trailingCharsToStrip > 0) {
 this.endColumn = 0;
 }
 return this;
 }

 /**
 * Scans forward the nodes on the same line to see whether there is a
 * deliberate left trim in effect. Returns true if the left trim was
 * present.
 */
 private boolean deliberateLeftTrim() {
 boolean result = false;
 for (TemplateElement elem = this.nextTerminalNode(); elem != null
 && elem.beginLine == this.endLine; elem = elem
 .nextTerminalNode()) {
 if (elem instanceof TrimInstruction) {
 TrimInstruction ti = (TrimInstruction) elem;
 if (!ti.left && !ti.right) {
 result = true;
 }
 if (ti.left) {
 result = true;
 int lastNewLineIndex = lastNewLineIndex();
 if (lastNewLineIndex >= 0 || beginColumn == 1) {
 char[] firstPart = substring(text, 0,
 lastNewLineIndex + 1);
 char[] lastLine = substring(text, 1 + lastNewLineIndex);
 if (trim(lastLine).length == 0) {
 this.text = firstPart;
 this.endColumn = 0;
 } else {
 int i = 0;
 while (Character.isWhitespace(lastLine[i])) {
 i++;
 }
 char[] printablePart = substring(lastLine, i);
 this.text = concat(firstPart, printablePart);
 }
 }
 }
 }
 }
 if (result) {
 }
 return result;
 }

 /**
 * Checks for the presence of a t or rt directive on the same line. Returns
 * true if the right trim directive was present.
 */
 private boolean deliberateRightTrim() {
 boolean result = false;
 for (TemplateElement elem = this.prevTerminalNode(); elem != null
 && elem.endLine == this.beginLine; elem = elem
 .prevTerminalNode()) {
 if (elem instanceof TrimInstruction) {
 TrimInstruction ti = (TrimInstruction) elem;
 if (!ti.left && !ti.right) {
 result = true;
 }
 if (ti.right) {
 result = true;
 int firstLineIndex = firstNewLineIndex() + 1;
 if (firstLineIndex == 0) {
 return false;
 }
 if (text.length > firstLineIndex
 && text[firstLineIndex - 1] == '\r'
 && text[firstLineIndex] == '\n') {
 firstLineIndex++;
 }
 char[] trailingPart = substring(text, firstLineIndex);
 char[] openingPart = substring(text, 0, firstLineIndex);
 if (trim(openingPart).length == 0) {
 this.text = trailingPart;
 this.beginLine++;
 this.beginColumn = 1;
 } else {
 int lastNonWS = openingPart.length - 1;
 while (Character.isWhitespace(text[lastNonWS])) {
 lastNonWS--;
 }
 char[] printablePart = substring(text, 0, lastNonWS + 1);
 if (trim(trailingPart).length == 0) {
 // THIS BLOCK IS HEINOUS! THERE MUST BE A BETTER
 // WAY! REVISIT (JR)
 boolean trimTrailingPart = true;
 for (TemplateElement te = this.nextTerminalNode(); te != null
 && te.beginLine == this.endLine; te = te
 .nextTerminalNode()) {
 if (te.heedsOpeningWhitespace()) {
 trimTrailingPart = false;
 }
 if (te instanceof TrimInstruction
 && ((TrimInstruction) te).left) {
 trimTrailingPart = true;
 break;
 }
 }
 if (trimTrailingPart)
 trailingPart = EMPTY_CHAR_ARRAY;
 }
 this.text = concat(printablePart, trailingPart);
 }
 }
 }
 }
 return result;
 }

 /*
 * private String leftTrim(String s) { int i =0; while (i<s.length()) { if
 * (!Character.isWhitespace(s.charAt(i))) break; ++i; } return
 * s.substring(i); }
 */
 private int firstNewLineIndex() {
 String content = new String(text);
 int newlineIndex1 = content.indexOf('\n');
 int newlineIndex2 = content.indexOf('\r');
 int result = newlineIndex1 >= 0 ? newlineIndex1 : newlineIndex2;
 if (newlineIndex1 >= 0 && newlineIndex2 >= 0) {
 result = Math.min(newlineIndex1, newlineIndex2);
 }
 return result;
 }

 private int lastNewLineIndex() {
 String content = new String(text);
 return Math.max(content.lastIndexOf('\r'), content.lastIndexOf('\n'));
 }

 /**
 * figures out how many opening whitespace characters to strip in the
 * post-parse cleanup phase.
 */
 private int openingCharsToStrip() {
 int newlineIndex = firstNewLineIndex();
 if (newlineIndex == -1 && beginColumn != 1) {
 return 0;
 }
 ++newlineIndex;
 if (text.length > newlineIndex) {
 if (newlineIndex > 0 && text[newlineIndex - 1] == '\r'
 && text[newlineIndex] == '\n') {
 ++newlineIndex;
 }
 }
 if (new String(text).substring(0, newlineIndex).trim().length() > 0) {
 return 0;
 }
 // We look at the preceding elements on the line to see if we should
 // strip the opening newline and any whitespace preceding it.
 for (TemplateElement elem = this.prevTerminalNode(); elem != null
 && elem.endLine == this.beginLine; elem = elem
 .prevTerminalNode()) {
 if (elem.heedsOpeningWhitespace()) {
 return 0;
 }
 }
 return newlineIndex;
 }

 /**
 * figures out how many trailing whitespace characters to strip in the
 * post-parse cleanup phase.
 */
 private int trailingCharsToStrip() {
 String content = new String(text);
 int lastNewlineIndex = lastNewLineIndex();
 if (lastNewlineIndex == -1 && beginColumn != 1) {
 return 0;
 }
 String substring = content.substring(lastNewlineIndex + 1);
 if (substring.trim().length() > 0) {
 return 0;
 }
 // We look at the elements afterward on the same line to see if we
 // should strip any whitespace after the last newline
 for (TemplateElement elem = this.nextTerminalNode(); elem != null
 && elem.beginLine == this.endLine; elem = elem
 .nextTerminalNode()) {
 if (elem.heedsTrailingWhitespace()) {
 return 0;
 }
 }
 return substring.length();
 }

 boolean heedsTrailingWhitespace() {
 if (isIgnorable()) {
 return false;
 }
 for (int i = 0; i < text.length; i++) {
 char c = text[i];
 if (c == '\n' || c == '\r') {
 return false;
 }
 if (!Character.isWhitespace(c)) {
 return true;
 }
 }
 return true;
 }

 boolean heedsOpeningWhitespace() {
 if (isIgnorable()) {
 return false;
 }
 for (int i = text.length - 1; i >= 0; i--) {
 char c = text[i];
 if (c == '\n' || c == '\r') {
 return false;
 }
 if (!Character.isWhitespace(c)) {
 return true;
 }
 }
 return true;
 }

 boolean isIgnorable() {
 if (text == null || text.length == 0) {
 return true;
 }
 if (!isWhitespace()) {
 return false;
 }
 // trick here
 boolean atTopLevel = true;
 TemplateElement prevSibling = previousSibling();
 TemplateElement nextSibling = nextSibling();
 return ((prevSibling == null && atTopLevel) || nonOutputtingType(prevSibling))
 && ((nextSibling == null && atTopLevel) || nonOutputtingType(nextSibling));
 }

 private boolean nonOutputtingType(TemplateElement element) {
 return (element instanceof Macro || element instanceof Assignment
 || element instanceof AssignmentInstruction
 || element instanceof PropertySetting
 || element instanceof LibraryLoad || element instanceof Comment);
 }

 private static char[] substring(char[] c, int from, int to) {
 char[] c2 = new char[to - from];
 System.arraycopy(c, from, c2, 0, c2.length);
 return c2;
 }

 private static char[] substring(char[] c, int from) {
 return substring(c, from, c.length);
 }

 private static char[] trim(char[] c) {
 if (c.length == 0) {
 return c;
 }
 return new String(c).trim().toCharArray();
 }

 private static char[] concat(char[] c1, char[] c2) {
 char[] c = new char[c1.length + c2.length];
 System.arraycopy(c1, 0, c, 0, c1.length);
 System.arraycopy(c2, 0, c, c1.length, c2.length);
 return c;
 }

 boolean isWhitespace() {
 return text == null || trim(text).length == 0;
 }

}

Now if you run the web application you will see the upload page.
Next step is to configure the GaeFileUploadInterceptor in struts.xml file.In struts 2, file upload is done by FileUploadInterceptor which intercept all the MultiPartRequest and provides the File object to the action. Then action does what ever it wants to do with the File object.But, on google app engine you can’t get the File object because file writes and many other file related operations are not allowed on GAE.So, we will use GaeFileUploadInterceptor which provides a String object which contains all the file content.You can save this string as a blob into the datastore or convert this string object into InputStream and return to the user.You need to add an entry in struts.xml for GaeFileUploadInterceptor.

</pre>
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<include file="struts-default.xml"></include>
<package name="" namespace="/" extends="struts-default">
<interceptors>
<interceptor name="gaeFileUploadInterceptor"
class="com.struts2.gae.interceptor.GaeFileUploadInterceptor" />
<interceptor-stack name="fileUploadStack">
<interceptor-ref name="gaeFileUploadInterceptor"></interceptor-ref>
<interceptor-ref name="basicStack"></interceptor-ref>
</interceptor-stack>
</interceptors>

<default-interceptor-ref name="fileUploadStack" />
<action name="add">
<result>/upload.jsp</result>
</action>
</package>

</struts>
<pre>

Next step is to create the UploadAction which will handle the upload request.


package com.fileupload;

import java.io.InputStream;

import org.apache.commons.io.IOUtils;

import com.opensymphony.xwork2.ActionSupport;

public class UploadAction extends ActionSupport {

 private static final long serialVersionUID = -300329750248730163L;
 private String photo;
 private String photoContentType;
 private String photoFileName;
 private InputStream photoStream;

 public String upload() throws  Exception {
 photoStream = IOUtils.toInputStream(photo,"ISO-8859-1");
 return "success";
 }

 public String getPhoto() {
 return photo;
 }

 public void setPhoto(String photo) {
 this.photo = photo;
 }

 public String getPhotoContentType() {
 return photoContentType;
 }

 public void setPhotoContentType(String photoContentType) {
 this.photoContentType = photoContentType;
 }

 public String getPhotoFileName() {
 return photoFileName;
 }

 public void setPhotoFileName(String photoFileName) {
 this.photoFileName = photoFileName;
 }

 public InputStream getPhotoStream() {
 return photoStream;
 }

 public void setPhotoStream(InputStream photoStream) {
 this.photoStream = photoStream;
 }
}

If you notice there are three properties in the action photo,photoContentType,photoFileName.These properties get their values from the GaeFileUploadInterceptor. These properties have to start with name you gave the file in the upload.jsp <s:file name=”photo” label=”Upload new Photo”></s:file>. In this, name is “photo” so you will get your file content in a property called photo and the two other properties will start with photo.

The second thing to notice is that result of action is “success” which is not SUCCESS you normally use. In this we are using a different result type called org.apache.struts2.dispatcher.StreamResult. Stream result is a custom Result type for sending raw data (via an InputStream) directly to the HttpServletResponse.

Now we will configure UploadAction in struts.xml


<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
 <include file="struts-default.xml"></include>
 <package name="" namespace="/" extends="struts-default">
 <interceptors>
 <interceptor name="gaeFileUploadInterceptor"
 class="com.struts2.gae.interceptor.GaeFileUploadInterceptor" />
 <interceptor-stack name="fileUploadStack">
 <interceptor-ref name="gaeFileUploadInterceptor"></interceptor-ref>
 <interceptor-ref name="basicStack"></interceptor-ref>
 </interceptor-stack>
 </interceptors>

 <default-interceptor-ref name="fileUploadStack" />
 <action name="add">
 <result>/upload.jsp</result>
 </action>
 <action name="upload" method="upload">
 <result name="success" type = "stream">
 <param name="contentType">image/jpeg</param>
 <param name="inputName">photoStream</param>
 <param name="contentDisposition">filename="photo.jpg"</param>
 <param name="bufferSize">1024</param>
 </result>
 </action>
 </package>

</struts>

Finally, Run this application you will be able to upload the photo and then view it in your browser.

In this blog, i have tried to explain you how you can do file upload using struts 2 on google app engine.Please make sure you download the struts2-gae jar.Hope this helps you all.

You can dowload the sample project from here.

Creating Struts2 application on Google App Engine (GAE)

Why i am writing this blog?

I faced lot of problems while creating my first application using Struts 2 on Google App Engine . So i decided to write a blog detailing how developers can create their application on Struts2 by avoiding the problems that i faced while developing my application.

Note

If you want to do FileUpload using struts 2 on google app engine please refer to this post.

Prerequisites for starting Struts2 Application on Google App Engine

Before you start building your sample application on google app engine using struts 2 you will need the following:-

Google App Engine runs on java 5 and above so if necessary, download and install the Java SE Development Kit (JDK) for your platform and for mac users download and install the latest version.
In this example we will be using Eclipse as our ide. So if necessary, download eclipse and google app engine plugin for eclipse.You will also need to download the google java app engine SDK. For more information you can refer to installing the java SDK for google app engine.
Download the latest release of Struts2 framework.If you want to learn struts 2 a very good reference is struts 2 in action book.Please buy Struts 2 in Action.

Step by Step procedure to create Struts2 application on Google App Engine.

Step 1: Create a new project by clicking the New Web Application Project button in the toolbar new_app_button .

Step 2 : Give the project name say login as we are going to create a simple login application. Enter package name as com.login and uncheck “Use Google Web Toolkit,” and ensure “Use Google App Engine” is checked and click the finish button.

Step3 : When you click the finish button you will get a sample HelloWorld application, which you can run going in the Run menu, select Run As > Web Application.By default application will run at port 8080, you can view the sample application at http://locahost:8080. For more information on the sample google web application created by the plugin you can refer to Google java app engine documentation .Please keep in mind that intent of this document is not to provide developers the overview of Google App engine for Java.

Step4 : By now you are ready with the google app engine infrastructure and we can move to the next step of creating a login application in Struts 2.

for creating a struts 2 application you will need to first add the required dependencies to the login project. The required struts 2 jars are below mentioned and you can find these jars in struts2 package you downloaded inside the lib folder :-
- commons-fileupload-1.2.1.jar
- commons-io-1.3.2.jar
- commons-logging-1.1.jar
- freemarker-2.3.13.jar
- ognl-2.6.11.jar
- struts2-core-2.1.6.jar
- xwork-2.1.2.jar
Add these dependencies in your eclipse java build path.

Add these dependencies in the war/WEB-INF/lib folder so that these jars gets deployed along with your application.

As you can see in the above image there are some warnings in the problems view like “commons-fileupload-1.2.1.jar’ will not be available on the server’s classpath” .To remove these warnings you need to right click on the project and select properties and then go to Google > web application and click the add button and add all the jars and then press ok.

First step in creating a struts 2 application is configuring the web.xml (deployment descriptor) which is located in WEB-INF folder.You can remove the servlet declaration from web.xml as we will not be needing this.We need to add the FilterDispatcher declaration in web.xml because in struts2 every request goes pass through FilterDispatcher which will invoke the appropriate action corresponding to the URL mapping.So our web.xml will look like :-

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	version="2.5">
	<filter>
		<filter-name>struts2</filter-name>
		<filter-class>org.apache.struts2.dispatcher.FilterDispatcher</filter-class>
	</filter>
	<filter-mapping>
		<filter-name>struts2</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>
</web-app>

To start we will be creating a jsp login page using struts 2 tag library and we will call login page from index.html.To call the login page there are two ways first, we can directly call the login.jsp page from link second, we can calling it through struts. We will be taking the second step as this will show you how to configure actions when you dont need to invoke any action.Lets first see how our login page and index.html will look like :-

index.html

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<meta http-equiv="content-type" content="text/html; charset=UTF-8">
<title>Struts2 on Google App Engine</title>
</head>

<body>
<h1>Struts2 on Google App Engine!</h1>
<table>
<tr>
<td colspan="2" style="font-weight: bold;">Available Application:</td>
</tr>
<tr>
<td><a href="/member/login" />Login</td>
</tr>
</table>
</body>
</html>

login.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
 pageEncoding="ISO-8859-1"%>
<%@ taglib prefix="s" uri="/struts-tags" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Please login</title>
</head>
<body>
 <s:actionerror/>
 <s:form action="home" method="post">
 <s:textfield name="username" label="UserName"></s:textfield>
 <s:textfield name="password" label="Password"></s:textfield>
 <s:submit name="login" value="login"></s:submit>
 </s:form>
</body>
</html>

After creating the login.jsp we need to configure this as action in the struts.xml file which you be should put inside source folder parallel to log4j.properties file.We can configure action as mentioned below:-

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
	<include file="struts-default.xml"></include>
<package name="member" namespace="/member" extends="struts-default">
		<action name="login">
			<result>/login.jsp</result>
		</action>
	</package>
</struts>

Now try running this application by right click on project run as > web application and click http://localhost:8080. You will see index.html and when you click on login you will get this exception :-

SEVERE: Unable to set parameter [location] in result of type [org.apache.struts2.dispatcher.ServletDispatcherResult]

Caught OgnlException while setting property ‘location’ on type ‘org.apache.struts2.dispatcher.ServletDispatcherResult’. – Class: ognl.OgnlRuntime

File: OgnlRuntime.java

Method: invokeMethod

Line: 508 – ognl/OgnlRuntime.java:508:-1

at com.opensymphony.xwork2.ognl.OgnlUtil.internalSetProperty(OgnlUtil.java:392)

Caused by: java.lang.IllegalAccessException: Method [public void org.apache.struts2.dispatcher.StrutsResultSupport.setLocation(java.lang.String)] cannot be accessed.

at ognl.OgnlRuntime.invokeMethod(OgnlRuntime.java:508)

at ognl.OgnlRuntime.callAppropriateMethod(OgnlRuntime.java:812)

at ognl.OgnlRuntime.setMethodValue(OgnlRuntime.java:964)

at ognl.ObjectPropertyAccessor.setPossibleProperty(ObjectPropertyAccessor.java:75)

at ognl.ObjectPropertyAccessor.setProperty(ObjectPropertyAccessor.java:131)

at com.opensymphony.xwork2.ognl.accessor.ObjectAccessor.setProperty(ObjectAccessor.java:28)

at ognl.OgnlRuntime.setProperty(OgnlRuntime.java:1656)

at ognl.ASTProperty.setValueBody(ASTProperty.java:101)

at ognl.SimpleNode.evaluateSetValueBody(SimpleNode.java:177)

at ognl.SimpleNode.setValue(SimpleNode.java:246)

at ognl.Ognl.setValue(Ognl.java:476)

at com.opensymphony.xwork2.ognl.OgnlUtil.setValue(OgnlUtil.java:192)

at com.opensymphony.xwork2.ognl.OgnlUtil.internalSetProperty(OgnlUtil.java:385)

… 73 more

In order to resolve this problem we need to create an ServletContextListner which will set OGNL security manager to null when the context is initialized.

package com.login;

import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;

import ognl.OgnlRuntime;

public class OgnlListener implements ServletContextListener {

	@Override
	public void contextDestroyed(ServletContextEvent arg0) {
		// TODO Auto-generated method stub

	}

	@Override
	public void contextInitialized(ServletContextEvent arg0) {
		OgnlRuntime.setSecurityManager(null);
	}

}

Also we will need to make entry in web.xml file also for OgnlListener

	<listener>
	<listener-class>com.login.OgnlListener</listener-class>
</listener>

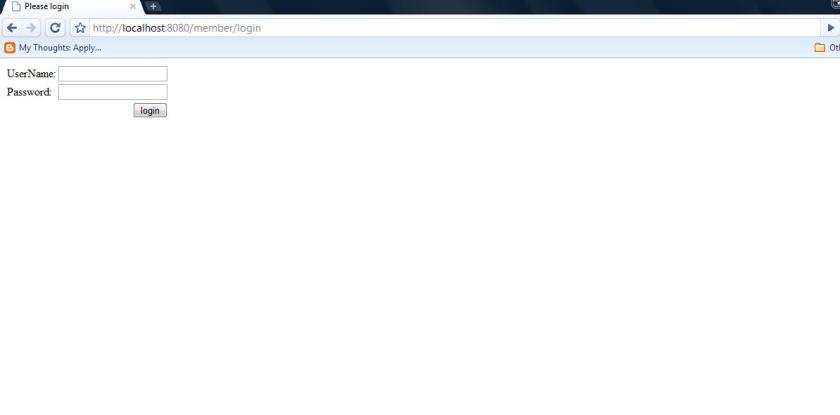

Now if you run the web application you will see the login page.
You need to add this step if you are using Google App Engine 1.2.6 because when you run struts2 application on google app engine 1.2.6 you will get the following error:-

To avoid this error you need to create a new package “freemarker.core” in your source folder and add the following class

</span></span>

/*
 * Copyright (c) 2003 The Visigoth Software Society. All rights
 * reserved.
 *
 * Redistribution and use in source and binary forms, with or without
 * modification, are permitted provided that the following conditions
 * are met:
 *
 * 1. Redistributions of source code must retain the above copyright
 *    notice, this list of conditions and the following disclaimer.
 *
 * 2. Redistributions in binary form must reproduce the above
copyright
 *    notice, this list of conditions and the following disclaimer in
 *    the documentation and/or other materials provided with the
 *    distribution.
 *
 * 3. The end-user documentation included with the redistribution, if
 *    any, must include the following acknowledgement:
 *       "This product includes software developed by the
 *        Visigoth Software Society (http://www.visigoths.org/)."
 *    Alternately, this acknowledgement may appear in the software
itself,
 *    if and wherever such third-party acknowledgements normally
appear.
 *
 * 4. Neither the name "FreeMarker", "Visigoth", nor any of the names
of the
 *    project contributors may be used to endorse or promote products
derived
 *    from this software without prior written permission. For written
 *    permission, please contact visigo...@visigoths.org.
 *
 * 5. Products derived from this software may not be called
"FreeMarker" or "Visigoth"
 *    nor may "FreeMarker" or "Visigoth" appear in their names
 *    without prior written permission of the Visigoth Software
Society.
 *
 * THIS SOFTWARE IS PROVIDED ``AS IS'' AND ANY EXPRESSED OR IMPLIED
 * WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
 * OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
 * DISCLAIMED.  IN NO EVENT SHALL THE VISIGOTH SOFTWARE SOCIETY OR
 * ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
 * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
 * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
 * USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
 * ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
 * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT
 * OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF
 * SUCH DAMAGE.
 *
====================================================================
 *
 * This software consists of voluntary contributions made by many
 * individuals on behalf of the Visigoth Software Society. For more
 * information on the Visigoth Software Society, please see
 * http://www.visigoths.org/
 */

package freemarker.core;

import java.io.IOException;

/**
 * A TemplateElement representing a block of plain text.
 *
 * @version $Id: TextBlock.java,v 1.17 2004/01/06 17:06:42 szegedia Exp $
 */
public final class TextBlock extends TemplateElement {
 private static final char[] EMPTY_CHAR_ARRAY = new char[0];
 static final TextBlock EMPTY_BLOCK = new TextBlock(EMPTY_CHAR_ARRAY, false);
 // We're using char[] instead of String for storing the text block because
 // Writer.write(String) involves copying the String contents to a char[]
 // using String.getChars(), and then calling Writer.write(char[]).By
 // using Writer.write(char[]) directly, we avoid array copying on each
 // write.
 private char[] text;
 private final boolean unparsed;

 public TextBlock(String text) {
 this(text, false);
 }

 public TextBlock(String text, boolean unparsed) {
 this(text.toCharArray(), unparsed);
 }

 private TextBlock(char[] text, boolean unparsed) {
 this.text = text;
 this.unparsed = unparsed;
 }

 /**
 * Simply outputs the text.
 */
 public void accept(Environment env) throws IOException {
 env.getOut().write(text);
 }

 public String getCanonicalForm() {
 String text = new String(this.text);
 if (unparsed) {
 return "<#noparse>" + text + "</#noparse>";
 }
 return text;
 }

 public String getDescription() {
 String s = new String(text).trim();
 if (s.length() == 0) {
 return "whitespace";
 }
 if (s.length() > 20) {
 s = s.substring(0, 20) + "...";
 s = s.replace('\n', ' ');
 s = s.replace('\r', ' ');
 }
 return "text block (" + s + ")";
 }

 TemplateElement postParseCleanup(boolean stripWhitespace) {
 if (text.length == 0)
 return this;
 int openingCharsToStrip = 0, trailingCharsToStrip = 0;
 boolean deliberateLeftTrim = deliberateLeftTrim();
 boolean deliberateRightTrim = deliberateRightTrim();
 if (!stripWhitespace || text.length == 0) {
 return this;
 }
 if (parent.parent == null && previousSibling() == null)
 return this;
 if (!deliberateLeftTrim) {
 trailingCharsToStrip = trailingCharsToStrip();
 }
 if (!deliberateRightTrim) {
 openingCharsToStrip = openingCharsToStrip();
 }
 if (openingCharsToStrip == 0 && trailingCharsToStrip == 0) {
 return this;
 }
 this.text = substring(text, openingCharsToStrip, text.length
 - trailingCharsToStrip);
 if (openingCharsToStrip > 0) {
 this.beginLine++;
 this.beginColumn = 1;
 }
 if (trailingCharsToStrip > 0) {
 this.endColumn = 0;
 }
 return this;
 }

 /**
 * Scans forward the nodes on the same line to see whether there is a
 * deliberate left trim in effect. Returns true if the left trim was
 * present.
 */
 private boolean deliberateLeftTrim() {
 boolean result = false;
 for (TemplateElement elem = this.nextTerminalNode(); elem != null
 && elem.beginLine == this.endLine; elem = elem
 .nextTerminalNode()) {
 if (elem instanceof TrimInstruction) {
 TrimInstruction ti = (TrimInstruction) elem;
 if (!ti.left && !ti.right) {
 result = true;
 }
 if (ti.left) {
 result = true;
 int lastNewLineIndex = lastNewLineIndex();
 if (lastNewLineIndex >= 0 || beginColumn == 1) {
 char[] firstPart = substring(text, 0,
 lastNewLineIndex + 1);
 char[] lastLine = substring(text, 1 + lastNewLineIndex);
 if (trim(lastLine).length == 0) {
 this.text = firstPart;
 this.endColumn = 0;
 } else {
 int i = 0;
 while (Character.isWhitespace(lastLine[i])) {
 i++;
 }
 char[] printablePart = substring(lastLine, i);
 this.text = concat(firstPart, printablePart);
 }
 }
 }
 }
 }
 if (result) {
 }
 return result;
 }

 /**
 * Checks for the presence of a t or rt directive on the same line. Returns
 * true if the right trim directive was present.
 */
 private boolean deliberateRightTrim() {
 boolean result = false;
 for (TemplateElement elem = this.prevTerminalNode(); elem != null
 && elem.endLine == this.beginLine; elem = elem
 .prevTerminalNode()) {
 if (elem instanceof TrimInstruction) {
 TrimInstruction ti = (TrimInstruction) elem;
 if (!ti.left && !ti.right) {
 result = true;
 }
 if (ti.right) {
 result = true;
 int firstLineIndex = firstNewLineIndex() + 1;
 if (firstLineIndex == 0) {
 return false;
 }
 if (text.length > firstLineIndex
 && text[firstLineIndex - 1] == '\r'
 && text[firstLineIndex] == '\n') {
 firstLineIndex++;
 }
 char[] trailingPart = substring(text, firstLineIndex);
 char[] openingPart = substring(text, 0, firstLineIndex);
 if (trim(openingPart).length == 0) {
 this.text = trailingPart;
 this.beginLine++;
 this.beginColumn = 1;
 } else {
 int lastNonWS = openingPart.length - 1;
 while (Character.isWhitespace(text[lastNonWS])) {
 lastNonWS--;
 }
 char[] printablePart = substring(text, 0, lastNonWS + 1);
 if (trim(trailingPart).length == 0) {
 // THIS BLOCK IS HEINOUS! THERE MUST BE A BETTER
 // WAY! REVISIT (JR)
 boolean trimTrailingPart = true;
 for (TemplateElement te = this.nextTerminalNode(); te != null
 && te.beginLine == this.endLine; te = te
 .nextTerminalNode()) {
 if (te.heedsOpeningWhitespace()) {
 trimTrailingPart = false;
 }
 if (te instanceof TrimInstruction
 && ((TrimInstruction) te).left) {
 trimTrailingPart = true;
 break;
 }
 }
 if (trimTrailingPart)
 trailingPart = EMPTY_CHAR_ARRAY;
 }
 this.text = concat(printablePart, trailingPart);
 }
 }
 }
 }
 return result;
 }

 /*
 * private String leftTrim(String s) { int i =0; while (i<s.length()) { if
 * (!Character.isWhitespace(s.charAt(i))) break; ++i; } return
 * s.substring(i); }
 */
 private int firstNewLineIndex() {
 String content = new String(text);
 int newlineIndex1 = content.indexOf('\n');
 int newlineIndex2 = content.indexOf('\r');
 int result = newlineIndex1 >= 0 ? newlineIndex1 : newlineIndex2;
 if (newlineIndex1 >= 0 && newlineIndex2 >= 0) {
 result = Math.min(newlineIndex1, newlineIndex2);
 }
 return result;
 }

 private int lastNewLineIndex() {
 String content = new String(text);
 return Math.max(content.lastIndexOf('\r'), content.lastIndexOf('\n'));
 }

 /**
 * figures out how many opening whitespace characters to strip in the
 * post-parse cleanup phase.
 */
 private int openingCharsToStrip() {
 int newlineIndex = firstNewLineIndex();
 if (newlineIndex == -1 && beginColumn != 1) {
 return 0;
 }
 ++newlineIndex;
 if (text.length > newlineIndex) {
 if (newlineIndex > 0 && text[newlineIndex - 1] == '\r'
 && text[newlineIndex] == '\n') {
 ++newlineIndex;
 }
 }
 if (new String(text).substring(0, newlineIndex).trim().length() > 0) {
 return 0;
 }
 // We look at the preceding elements on the line to see if we should
 // strip the opening newline and any whitespace preceding it.
 for (TemplateElement elem = this.prevTerminalNode(); elem != null
 && elem.endLine == this.beginLine; elem = elem
 .prevTerminalNode()) {
 if (elem.heedsOpeningWhitespace()) {
 return 0;
 }
 }
 return newlineIndex;
 }

 /**
 * figures out how many trailing whitespace characters to strip in the
 * post-parse cleanup phase.
 */
 private int trailingCharsToStrip() {
 String content = new String(text);
 int lastNewlineIndex = lastNewLineIndex();
 if (lastNewlineIndex == -1 && beginColumn != 1) {
 return 0;
 }
 String substring = content.substring(lastNewlineIndex + 1);
 if (substring.trim().length() > 0) {
 return 0;
 }
 // We look at the elements afterward on the same line to see if we
 // should strip any whitespace after the last newline
 for (TemplateElement elem = this.nextTerminalNode(); elem != null
 && elem.beginLine == this.endLine; elem = elem
 .nextTerminalNode()) {
 if (elem.heedsTrailingWhitespace()) {
 return 0;
 }
 }
 return substring.length();
 }

 boolean heedsTrailingWhitespace() {
 if (isIgnorable()) {
 return false;
 }
 for (int i = 0; i < text.length; i++) {
 char c = text[i];
 if (c == '\n' || c == '\r') {
 return false;
 }
 if (!Character.isWhitespace(c)) {
 return true;
 }
 }
 return true;
 }

 boolean heedsOpeningWhitespace() {
 if (isIgnorable()) {
 return false;
 }
 for (int i = text.length - 1; i >= 0; i--) {
 char c = text[i];
 if (c == '\n' || c == '\r') {
 return false;
 }
 if (!Character.isWhitespace(c)) {
 return true;
 }
 }
 return true;
 }

 boolean isIgnorable() {
 if (text == null || text.length == 0) {
 return true;
 }
 if (!isWhitespace()) {
 return false;
 }
 // trick here
 boolean atTopLevel = true;
 TemplateElement prevSibling = previousSibling();
 TemplateElement nextSibling = nextSibling();
 return ((prevSibling == null && atTopLevel) || nonOutputtingType(prevSibling))
 && ((nextSibling == null && atTopLevel) || nonOutputtingType(nextSibling));
 }

 private boolean nonOutputtingType(TemplateElement element) {
 return (element instanceof Macro || element instanceof Assignment
 || element instanceof AssignmentInstruction
 || element instanceof PropertySetting
 || element instanceof LibraryLoad || element instanceof Comment);
 }

 private static char[] substring(char[] c, int from, int to) {
 char[] c2 = new char[to - from];
 System.arraycopy(c, from, c2, 0, c2.length);
 return c2;
 }

 private static char[] substring(char[] c, int from) {
 return substring(c, from, c.length);
 }

 private static char[] trim(char[] c) {
 if (c.length == 0) {
 return c;
 }
 return new String(c).trim().toCharArray();
 }

 private static char[] concat(char[] c1, char[] c2) {
 char[] c = new char[c1.length + c2.length];
 System.arraycopy(c1, 0, c, 0, c1.length);
 System.arraycopy(c2, 0, c, c1.length, c2.length);
 return c;
 }

 boolean isWhitespace() {
 return text == null || trim(text).length == 0;
 }

}

Next step is to create the LoginAction which will be do the business processing of whether usename and password are correct .

package com.login;

import com.opensymphony.xwork2.ActionSupport;

public class LoginAction extends ActionSupport {

	private static final long serialVersionUID = 1L;
	private String username;
	private String password;

	public String login(){
		if(username.equals("whyjava") && password.equals("password")){
			addActionMessage("You are successfully logged in.");
			return SUCCESS;
		}
		addActionError("Username and Password Combination doesnot match.");
		return INPUT;
	}

	public String getUsername() {
		return username;
	}

	public void setUsername(String username) {
		this.username = username;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

}

Next we need to modify struts.xml so that we LoginAction is configured.

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
	<include file="struts-default.xml"></include>
<package name="member" namespace="/member" extends="struts-default">
		<action name="login">
			<result>/login.jsp</result>
		</action>
		<action name="home" method="login" class="com.login.LoginAction">
			<result>/home.jsp</result>
			<result name="input">/login.jsp</result>
		</action>
	</package>
</struts>

finally we need to add one more jsp which is home.jsp which will be called when user is able to successfully login.

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
	pageEncoding="ISO-8859-1"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Home Page</title>
</head>
<body>
<s:actionmessage />

</body>
</html>

Now try running this application by right click on project run as > web application and click http://localhost:8080.

index

Now click on the login link you will be taken to the login page

Now enter username as whyjava and password as password you will be an struts 2 action will fire and you will be taken to the home page.

home

I have tried to cover all the steps you will need to start of your first struts 2 project. Hope you all find this post useful.

If you need to start learning struts2 you can read Struts 2 in Action. It is a very good book to get a very good understanding of all the struts 2 concepts.
